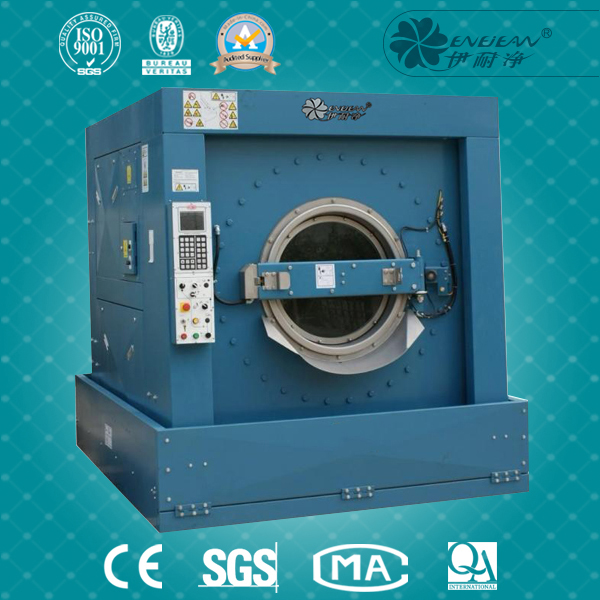

產品簡要說明：賓館洗滌設備、賓館洗滌設備報價、酒店賓館洗滌設備、酒店布草洗滌設備
· Feature
1.采用觸摸式可編程微電腦控制，屏幕點陣液晶顯示，中文人機對話界面，可實現初洗、洗滌、消毒、過清、漂白、脫水等。
PLC touch panel with LCD display, pre set process of laundry, degassing,rinsing and extracting.
2.洗衣缸采用統膽式，無隔倉，裝料方便。自動開門、關門、出料自動傾斜。
Straight tube type washing cylinders, easy loading; Automatic open&close door, automatic tilting when unloading clothes;
3.本機各控制閥采用氣動控制，動作可靠，并采用雙管后排水結構，排水，無污染。
Pneumatic control valve, fast and reliable; Dual drain pipe, fast and Eco-friend;
4.采用不銹鋼制作，抗腐蝕性強，經久耐用。
Stainless structure, strong corrosion resistance and durable;
5.采用變頻速度、耗能、電機啟動運行平穩。速脫水設置為一至四個速度，可根據不同洗滌物選擇不同的洗滌速度。懸浮結構避振，振動小，無需殊基礎。
VFD drive, low energy consumption, motor start and running smoothly; Four optional speed, adjust speed according to different clothes; Fully suspended structure to avoid vibration, freestanding
· Feature
1.采用觸摸式可編程微電腦控制，屏幕點陣液晶顯示，中文人機對話界面，可實現初洗、洗滌、消毒、過清、漂白、脫水等。
PLC touch panel with LCD display, pre set process of laundry, degassing,rinsing and extracting.
2.洗衣缸采用統膽式，無隔倉，裝料方便。自動開門、關門、出料自動傾斜。
Straight tube type washing cylinders, easy loading; Automatic open&close door, automatic tilting when unloading clothes;
3.本機各控制閥采用氣動控制，動作可靠，并采用雙管后排水結構，排水，無污染。
Pneumatic control valve, fast and reliable; Dual drain pipe, fast and Eco-friend;
4.采用不銹鋼制作，抗腐蝕性強，經久耐用。
Stainless structure, strong corrosion resistance and durable;
5.采用變頻速度、耗能、電機啟動運行平穩。速脫水設置為一至四個速度，可根據不同洗滌物選擇不同的洗滌速度。懸浮結構避振，振動小，無需殊基礎。
VFD drive, low energy consumption, motor start and running smoothly; Four optional speed, adjust speed according to different clothes; Fully suspended structure to avoid vibration, freestanding
| 型號Model | XFQ-100 |
| 內膽容量（干物）kg Rated capacity (dry loading) | 100 |
| 內膽直徑×長度mm Inner drum (D×L) | ∮1240×840 |
| 洗衣缸直徑×長度mm Outer drum (D×L) | ∮1322×953 |
| 洗衣/均布轉速rpm Washing/distributing speed | 30/60 |
| 中速脫水轉速rpm Middle extracting speed | 325 |
| 速1-4脫水轉速 High (1-4) extracting speed | 680 |
| 電機功率 kw Motor Power | 7.5 |
| 取衣傾斜角度a Tilting angle of unloading | 18° |
| 蒸汽管通徑DN Steam pipe | 25 |
| 冷/熱水管通徑DN Cool/hot water pipe | 40 |
| 排水管外徑mm Water drain pipe |
∮114(2 pcs) （2pinpes） |
| 壓縮客氣接管通徑mm Connecting pipe of compressed air | ∮8 |
| 蒸汽壓力MPa Steam pressure | 0.4-0.6 |
| 自來水壓力MPaB Tap water pressure MPa | 0.2-0.4 |
| 壓縮空氣工作壓力MPa Compressed air pressure | 0.4-0.6 |
| 每車耗水量kg Water consumption per cycle | 1.8 |
| 每車耗電量kw.h Power consumption per cycle | 1.8 |
| 每車耗蒸汽量kg Steam consumption per cycle | 50 |
| 配備空氣壓縮機流量m³/min Flow of air compressor | 0.1 |
| 電源V/P/Hz Power supply | 380/3/50 |
| 外形尺寸（長×寬×）mm Dimension (L ×W×H) | 1900×1700×1990 |
| 整機重量約kg Weight | 3720 |
