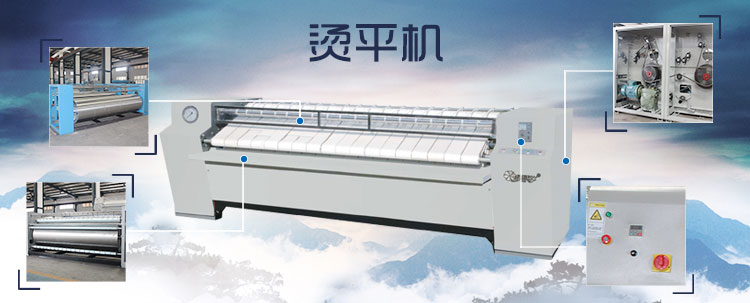

PTPYY蒸汽單滾燙平機系列

PTPYY蒸汽單滾燙平機系列

功能點Feature and functions
●QZPⅠ蒸汽燙平機采用蒸汽加熱,傳動采用調速調整根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
洗滌設備
功能點Feature and functions
●QZPⅠ蒸汽燙平機采用蒸汽加熱,傳動采用調速調整,根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
●副輥采用噴鋅處理,抗腐蝕能力強,經久耐用。
●QZPⅠthe steam single roller irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes  fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
技術參數Technical parameters
型號 model



項目 item
QZPⅠ2200 QZPⅠ2500 QZPⅠ2800 QZPⅠ3000 QZPⅠ3300
熨平寬 Biggest ironing width 2200 2500 2800 3000 3300
熨平速度(m/min) Ironing speed 0-6 0-6 0-6 0-6 0-6
加熱溫度(℃) Highest heating temperature 158 158 158 158 158
蒸汽壓力(MPA) Steam pressure 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
蒸汽耗量(kg/h) Steam consumption 100 120 140 155 170
電機功率(KW) Motor power 0.75 0.75 0.75 0.75 0.75
額定電壓(V) Rated voltage 380 380 380 380 380

外形尺寸

Dimension (L×W×H)
3400×1250×1250 3700×1250×1250 4000×1250×1250 4200×1250×1250 4400×1250×1250
整機重量 Machine weight 1300 1350 1450 1500 1600
