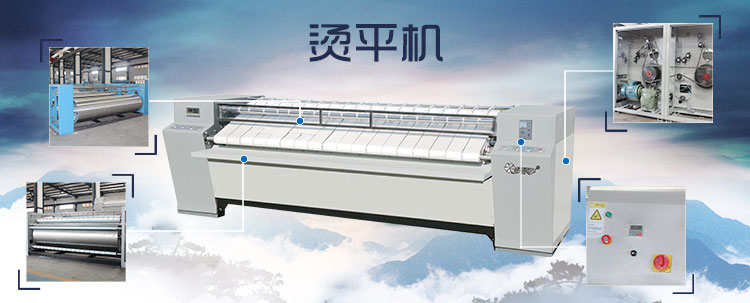

QQJPD系列電加熱單輥燙平機

QQJPD系列電加熱單輥燙平機

功能點Feature and functions
●QQJPD電熱燙平機采用電加熱,傳動采用調速調整根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
洗滌設備
功能點Feature and functions
●QQJPD電熱燙平機采用電加熱,傳動采用調速調整,根據加熱溫度和織物厚度隨意調節速度。
●輥筒采用傳質不銹鋼制造,表面經磨削加工處理使織物磨損降到。
●運行可靠,采用減速器聯接皮帶輪及鏈輪傳動,并配置傳動引擎機構,運行平穩。
●副輥采用噴鋅處理,抗腐蝕能力強,經久耐用。
●QQJPD the electric heating irons out machine uses thetric heating, the transmission uses the velocity modulation adjustment, according to heating temperature and fabric thickness at will adjustable speed.
●The big bowl uses the mass transfer stainless steel manufacture, the surface causes  fabric attrition after abrasive machining processing to reduce lowly.
●The movement is reliable, uses the reduction gear joint belt pulley and the sprocket feed, and disposes the transmission engine organization, the guarantee movement is steady.
●All vice rollers use spurt zinc processing, corrosion resistance ability, durable.
技術參數Technical parameters

型號 model


項目 item
QQJPD-1800 QQJPD-2200 QQJPD-2500 QQJPD-2800 QQJPD-3000
熨平寬度 Biggest ironing width 1800 2200 2500 2800 3000
熨平速度(speed/min) Ironing 0-6 0-6 0-6 0-6 0-6
加熱功率(KW) Heated power 27 32.4 36 43.2 43.2
加熱溫度(℃) Highest heating temperature 230 230 230 230 230
電機功率(KW) Motor power 0.75 0.75 0.75 0.75 0.75
額定電壓(V) Rated voltage 380 380 380 380 380
外形(長×寬×) (mm) Dimension
(L×W×H)
3000×
1250×
1250
3400×
1250×
1250
3700×
1250×
1250
4000×
1250×
1250
4200×
1250×
1250
整機重量 Machine weight 1200 1300 1350 1400 1450
